Technical Parameters
|
Name |
YZ-810 Horizontal Type label machine |
|
Power Supply |
AC220V 50/60HZ single phase |
|
Power Consumption |
2.4kw |
|
Labeling Speed |
600 bottle/min |
|
Labeling Precision |
±0.5mm |
|
Air Consumption to Date Batch Coder |
5kg/cm |
|
Container Range |
length:25-95mm width:12-24mm |
|
Label Range |
height:15-180mm length:10-100mm |
|
Max Label size |
Diameter ：420mm Inner diameter：76mm |
|
Distance Between labels |
3-4mm |
|
Interval between label and based paper |
2mm |
|
Note:All specifications to change without notice |
|
Characteristic
1.The equipment is suitable for slender round bottle.

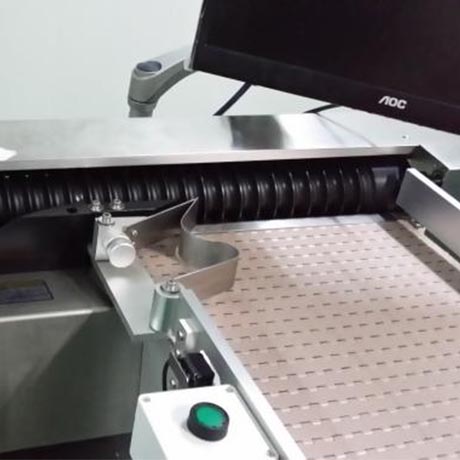

2.Use screw to send bottles which makes smoothly and safely.
3.Send bottles in the direction of vertical horizontal to feed stability, use easy and low labor strength .
4.Label positioning system makes the positioning accuracy.
5. Use servomotor to make high speed and good stability.
Optional:
1.Printer
2.Magic eye of transparent label
3.Fixed-point and position device
Machine Size：
